Home >  Scissor Lift Table >  Hydraulic Scissor Lift Table with Ce Certificate

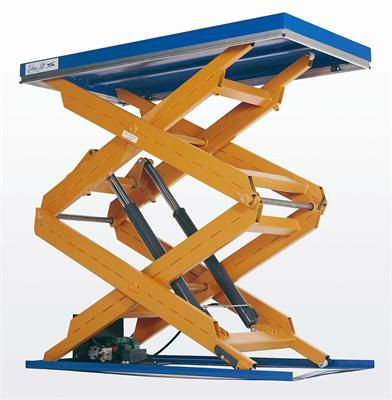

Hydraulic Scissor Lift Table with Ce Certificate Hydraulic Scissor Lift Table with Ce Certificate Hydraulic Scissor Lift Table with Ce Certificate

Hydraulic Scissor Lift Table with Ce Certificate

Product Description:  SPECIFICATIONS OF MANUAL SCISSOR LIFT TABLE Model   S150 Load capacity kg 150...
  • $1.00 - $200.00 / Units | Get Latest Price
  • L/C,T/T
  • Shandong
  • CE, ISO

Product Details

Place of Origin:Jiangsu, China Lift Mechanism:Scissor Lift
Lift Drive / Actuation:Electric Motor Power:1.1/2.2Kw Lift Table
Rated Loading Capacity:customized Min. Lifting Height:customized
Max. Lifting Height:customized Table Size:customized, Customized
Overall Dimensions:customized Weight:Lift Table
Certification:CE,GS,SGS,IAO9001 Lift Table Warranty:3 years warrenty Lift Table
Capacity:1000-6000kg Lift Table Lifting Range:205-5000mm Lift Table
After-sales Service Provided:Engineers available to service machinery overseas

Product Description

Product Description:

SPECIFICATIONS OF MANUAL SCISSOR LIFT TABLE
Model   S150
Load capacity kg 150
Max. lifting height mm 740
Min. height of table mm 225
Lifting height mm 515
Table size mm 700*450*35
Total height mm 935
Overall length mm 770
Foot pedal cycles to max. height   ≤25
Wheel diameter mm 100
Service weight kg 42

Advantages:

  • ​​Welded steel frame with durable coat finish.
  • Durable hydraulic pump ensures a long service life.
  • Robust casters with safety wheel guard enhance safety while operation.
  • Easy action foot operated foot hydraulic pedal for raising the lift table to a desired height level.
  • Safety back guard protects operators from dangers.
  • With supporting plat on side of arm to ensure the safety service.
  • Convenient finger release smoothly lowers even heavy loads.
  • With over load by pass valve to protect operator and pump.

Safety
1. In special circumstance, the scissor lift will use explosion-proof electric equipment
2.The platform equipped with antiskid plate to prevent slipping, it is enough safe when works on the platform.
3.The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
4. The scissor lift equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
