| Condition:New | Place of Origin:Zhejiang, China |
| Type:Powered Rearch Truck | Power Souce:AC Motor |
| Max. Lifting Height:3000 | Min. Lifting Height:80/85 |
| Fork Length:1150 | Fork Width:160 |
| Overall Dimensions:2095*1320*2157mm | Certification:CE |
| Warranty:1 Year | After-sales Service Provided:Online support |
| Rated Capacity:2500kg | Lift Height:3000mm |
| Max Lift Height:8000mm | Controller:Curtis |
| Fork Size:1070*120*35mm |
Product Specification
| model | T15-30 | T20-30 | T25-30 | T10-30 |
| load capacity KG | 1500 | 2000 | 2500 | 1000 |
| Electric controller | USA CURTIS | USA CURTIS | USA CURTIS | USA CURTIS |
| lifting height mm | 3000 | 3000 | 3000 | 3000 |
| overall dimensions (L*W*H) | 2200*1098*2100 mm | 2470*1260*2100 mm | 2470*1260*2100 mm | 2320*1090*2090 mm |
| fork length mm | 1070 mm | 1070 mm | 1070 mm | 1070 mm |
| Turning radius (outside) mm | 1615 | 1970 | 1970 | 1612 |
| self weight (KG) | 2300 | 2955 | 2955 | 2050 |
Advantages:

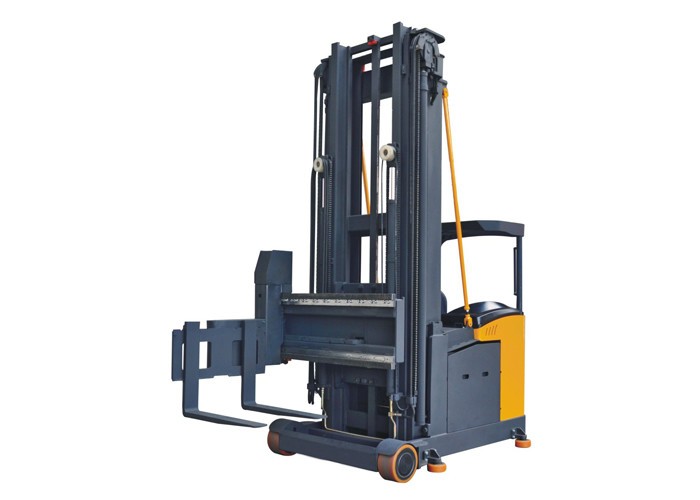

Narrow aisle truck lateral reach truck with full AC control system.
Lateral reach truck with finger-tips operation handle.
D15 lateral reach truck with electric power steering (EPS) system.
Narrow aisle truck with electric magnetic multi-valve.
Multi-function display, brake status, driving direction, hour meter, driving speed, fault code, etc.
48V 3 phase AC type with large capacity battery 1000AH.
The D15 lateral reach truck narrow aisle truck with smallest aisle width is 1600mm.
Full suspension comfortable seat with belt is adjustable.
Germany ZF brand gear box.
Adjustable steering wheel.
Sideway battery system.
FAQ
1. How long it will take to deliver the products after I pay for it?
Above delivery time is 26 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, tow tractor, order picker etc?
Our equipment quality warranty is 1 year or 1000 hours which comes first.
